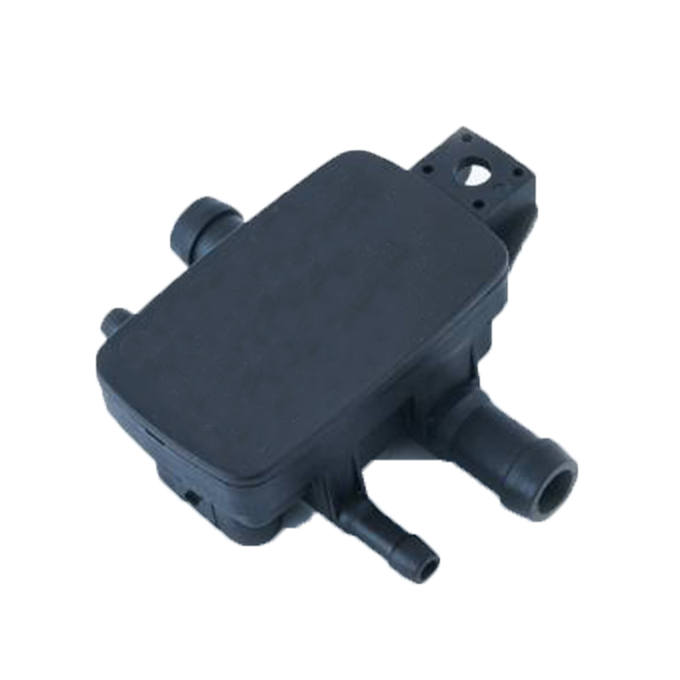

—— Introduce of CNG LPG injector map sensor
1. Applying to 4/6/8-cylinders gas engines.
2. Security protection function, when the engine off, cut off all gas solenoid valve power supply and gas path.
3. Automotive connectors, long time use.
4. The import of Electronic components, stable and reliable.
5. Equipped with multi-function switch.
6. Easy installation and easy debugging.
—— Product description of LPG MP48 gas ECU kit
MP48 ECU is designed for 3-4 cylinders multipoint timed sequential injection engines. While running on gas,MP48
ECU considers the petrol injection time and the pressure on the rail to calculate the equivalent amount of gas to be
injected in the intake manifold，to replicate the performance of the engine runningon petrol MP48 ECU is equipped
with a diagnosis system on every Gas component,whose status can be monitored by the calibration software during
the installation of the system and at any moment of the engine lifetime. This feature may preventmalfunctioning
problems and makes technical interventions easier.Thanks to the combination of MP48 and PTMAP sensor, the installation
steps are further simplified and the costs highly reduced. MP48’s compact case favors an easy installation of the ECU
inside the engine compartment. MP48 ECU is equipped with a 48-PIN new generation automotive connector, with an
IP high protection degree (6K9K) against water infiltrations and an easy leverage system for cable connection/disconnection.
Different series offer different discounted prices. For more information, please contact us.
