2 Cylinder CNG LPG Injector Rail LJ04 Series 1-3

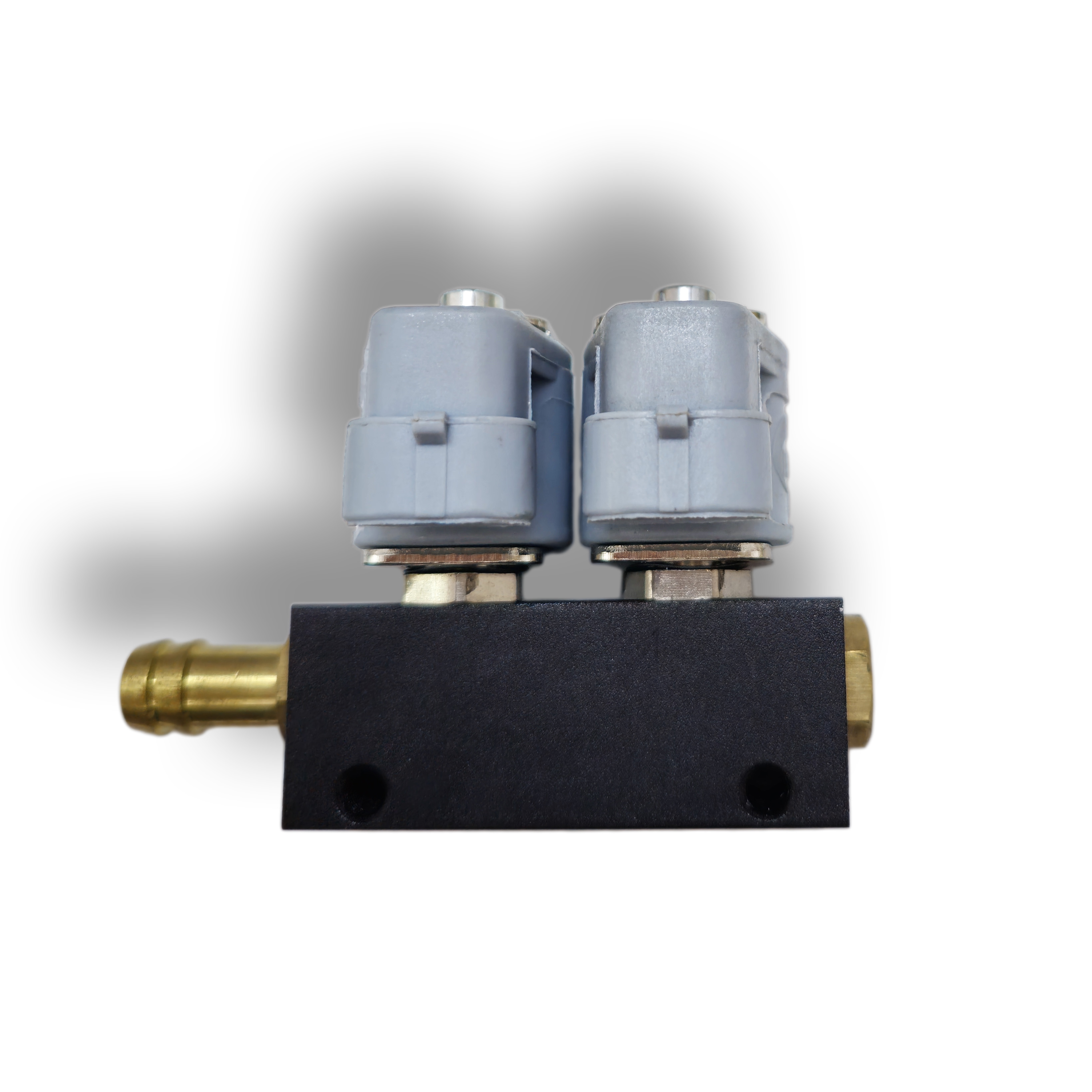

 —— Introduce of Injector Rail

According to the need of engine and burning gas ECU command, the injector injects fuel into cylinder quickly

and accurately. Its advantages are small & compact shape structure, low noise, stable injection flow, easy to

clean, stainless steel internal magnetic tube, excellent anti- friction property. it also can be regulated according

to engine's working situation at any time.Injector Rail is one part of gas engine sequential injection system. In

the different conditions of the engine, according to the ECU control strategy ECU calculated the injection timing

and pulse width (jet volume) , compressed natural gas injected into the gas rationing rail or cylinder.It also can

be regulated according to engine's working situation at any time.Injection valve and rail/injector rail, a key component

of  gas vehicle multi-point electronically controlled injection system, includes solenoid, valve nozzles and rail body etc.

The nozzles mounted inside the rail body, quantity is equal to the number of engine cylinders.

 —— Introduction to MP48 gas conversion ECU

Mp48 ECU is a well-known, high -performance and reliable fuel conversion ECU.Adopting high technology from Italy,

Europe-imported chips to ensure the best quality among peer companies.Mp48 ECU is disigned for 3/4 cylinder multipoin

timed sequential injection engines. While runing on gas, Mp48 detec ts the pertrol injection time and pressure on the rail.

Different series offer different discounted prices. For more information, please contact us.
